Compact Kiosk Design: Lessons from Japan for Asian Buyers

Japan offers a useful lesson for self-service buyers: a compact kiosk is not just a smaller cabinet.

Japanese railway stations, restaurants, and convenience stores all have to fit the transaction, the payment devices, an accessible approach, and the maintenance workflow into limited space. How operators and manufacturers handle those trade-offs is more useful than any single Japanese terminal specification.

For buyers across Asia, the goal is not to copy a Japanese machine. The question to answer is:

What is the smallest footprint that still lets every customer complete the service and every technician keep the system running?

The examples below show how Japanese deployments answer that question, and where the answer involves trade-offs that a spec sheet alone won’t show.

Table of Contents

1. The Footprint Is the Whole Journey, Not the Cabinet

Every stage of a self-service transaction takes up physical space:

Approach → Selection → Payment → Ticket/Receipt → Exit → Service access

A narrow kiosk can still need room for a wheelchair user to pull up, a customer to tap a card or scan a QR code, someone to collect a ticket and change, a queue to form without blocking a corridor, and a technician to open the door. A smaller enclosure that blocks an accessible approach or makes servicing awkward does not remove those costs. It moves them from hardware to operations.

Real example: tabletop vs. floor-standing ticket machines

Japan’s restaurant meal-ticket machines (shokkenki) make this trade-off easy to measure. Glory, a major Japanese supplier, publishes dimensions for both formats:

Model	Format	Dimensions (W × D × H)	Footprint	Cash accepted
Glory VT-S20	Tabletop/counter	310 × 250 × 578 mm	~0.08 m²	¥1,000 notes and coins
Glory VT-G21	Floor-standing	650 × 300 × 1,600 mm	~0.20 m²	¥10,000, ¥5,000, ¥2,000 and ¥1,000 notes (varies by variant)

Sources: Glory VT-S20 product page; Glory ticket machine catalog

The tabletop unit uses about 60% less area. But according to Glory’s catalog, the compact model’s cash handling is limited to ¥1,000 notes and coins, with contactless credit, electronic money, and QR payment available as options. The floor-standing models accept higher-value notes and offer larger touchscreens and more language options. Glory also says the VT-S20 can be mounted on an optional stand to work as a freestanding unit.

The catalog’s installation drawings also specify minimum clearances around each unit, and the floor-standing models show a 110° door-opening arc (Glory catalog). That door swing is part of the real footprint, even though it never shows up in the W × D × H line.

Buyer lesson: shrinking the cabinet often narrows payment options, and the service envelope still has to fit. Ask suppliers for installation drawings, not just product dimensions.

2. Convenience Stores: The Kiosk Doesn’t Have to Finish the Transaction

Japanese convenience stores are often described as self-checkout showcases. Their more useful lesson is something else: they split one transaction between a kiosk and a staffed counter.

Real example: Lawson’s Loppi terminal

According to Lawson, the process for paying for an online order works like this:

The customer picks “Lawson payment” online and gets a reference number.
At the in-store Loppi terminal, they enter the number and confirm the details.
Loppi prints an application slip.
The customer takes the slip to the register and pays within 30 minutes.

Lawson uses the same pattern for airline and highway-bus payments and for picking up reserved event tickets. For number-entry payments, Lawson specifies cash only at the register.

This is a deliberate design choice. The kiosk handles lookup, selection, and confirmation, which take the most time. The register handles payment, which already has staff, a cash drawer, and a card terminal. Loppi itself doesn’t need a cash module.

Buyer lesson: before adding every peripheral to one enclosure, ask which steps actually need to happen at the kiosk. Moving payment to an existing staffed point can produce a smaller, simpler, and cheaper machine.

3. Semi-Self Checkout: Splitting the Work Between Staff and Customer

Japan’s semi-self checkout model, called semi-self regi, takes the same idea further. A staff member scans the items, then the customer pays at a separate payment unit. Japanese retail and clinic-system sources describe it as a way to keep scanning accuracy while automating cash handling.

Real example: Glory S1000 change machine

Glory’s S1000 change-dispensing units are built for these self-payment stations. According to Glory’s product brochure:

The coin unit measures 230 × 330 × 650 mm and the note unit 140 × 330 × 650 mm.
Unit depth was cut by 40% compared with the previous model, to 33 cm (46 cm when installed in a housing).
One sample layout shows two semi-self lanes served by three payment stations. Another shows nine full self-checkouts: six that accept cash and three cashless-only.
Coin capacity is about 57% higher than Glory’s earlier 380 series. Glory says this reduces mid-day refills and collections.

Glory’s earlier 380 series followed the same approach: coin and note units fit within a 400 mm width when placed side by side, so they could go into slim terminals.

The design choices in that brochure show what Japanese “compact” usually means in practice. Depth gets cut to save aisle space, mixed cash and cashless lanes match the local payment mix, and extra capacity cuts down on staff visits.

Buyer lesson: a compact payment module only saves money if it also reduces how often staff have to service it. Ask for capacity and refill-interval data along with the dimensions.

4. Railway Stations: Throughput, Language, and Remote Assistance

Station ticket machines run at high volume in controlled space, and they serve many travelers who don’t know the system.

JR West says ticket machines are available at most of its stations and many have multilingual interfaces. Its instructions tell users to switch the language first, because the default screen is Japanese. Its reserved-seat machines also read QR codes for online bookings and, for some rail-pass exchanges, scan IC-chip passports. That means more peripherals in the same cabinet.

Real example: JR East’s “talking” ticket machines

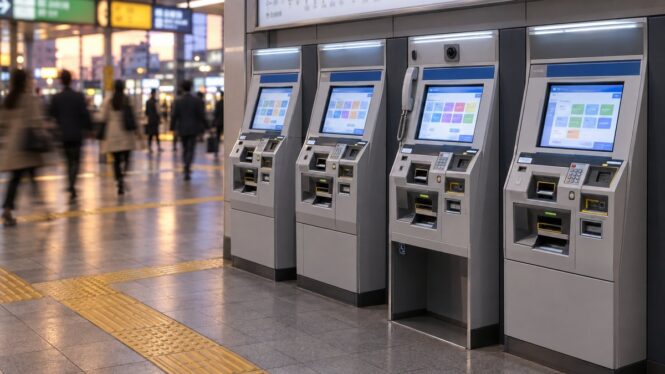

The most useful Japanese case for buyers may be what happened when a rail operator replaced staffed counters with assisted kiosks.

In 2021, JR East announced plans to reduce its staffed “Midori no Madoguchi” ticket counters from about 440 to about 140 by 2025 (ITmedia). It also rolled out hanaseru (“talking”) reserved-seat ticket machines, first introduced in 2020, which connect customers to a remote operator by video (JR East).

According to JR East’s guide, these machines:

Work as standard self-service machines when no help is needed.
Let customers call an operator through a screen microphone or a handset.
Show the number of people waiting and the estimated wait when operators are busy.
Let operators handle refunds, changes, and tickets that require proof of eligibility, which customers show to the machine’s camera (JR East FAQ).
Have operators available 8:00–20:00, which is shorter than the machines’ own operating hours.

The rollout ran into real limits. By spring 2024, counters had been cut to 209, and long lines formed at the remaining ones as commuter-pass season overlapped with rising inbound tourism. In May 2024, JR East’s president apologized and froze further cuts (President Online; ITmedia). Guides for travelers still warn that busy periods can mean waits to reach an operator.

The machines themselves worked. The problem was capacity. Each video session ties up one remote operator, so assisted self-service still depends on staffing levels, just at a central location instead of the station.

Buyer lesson: if a kiosk offers human assistance, specify the assistance capacity (operator hours, staffing ratio, maximum wait time, and what happens after hours) as part of the system. Don’t treat it as a feature checkbox.

5. Accessibility: Physical, Interface, and Service Requirements

Accessibility belongs in the specification from the start. Japan’s railway guidance shows why: much of it is about physical dimensions.

Real example: MLIT ticket-machine guidance

Japan’s Ministry of Land, Infrastructure, Transport and Tourism (MLIT) separates mandatory accessibility standards from guidelines that operators use as practical targets (MLIT). Its current passenger-facility guideline (September 2025 edition) includes these items for ticket machines (MLIT guideline, facilities section):

Requirement	Guidance
Main buttons	Centered around 110 cm high
Coin/note slot	110 cm or lower, unless the machine’s structure makes it unavoidable
Coin insertion	Accepts several coins at once
Knee clearance	About 60 cm or more high, about 40 cm deep, so wheelchair users can reach the controls
Touchscreen machines	Add a keypad with Braille, plus audio guidance
Call device	Intercom or call button recommended, with a visual “staff are on the way” indicator for deaf and hard-of-hearing users

The guideline gives the reasoning directly: touch-panel machines cannot be used by blind passengers, so a keypad is needed (MLIT). A flat screen, however readable, does not meet that need by itself.

Two details matter for buyers:

Knee clearance changes the footprint. A 40 cm-deep recess under the controls affects cabinet design, internal layout, and where the cash module can go. JR East described an early version of this design: machines with a slightly forward-tilted face and a hollowed-out lower section for wheelchair access.
Staffing and accessibility are linked. Under the mandatory standard, at least one ticket machine must be usable by older and disabled passengers. That requirement does not apply where a constantly staffed sales window exists, and staff must then sell tickets on request (MLIT). So when staffed counters are removed, the accessibility burden shifts to the machine.

A note on JIS X 8341-3

JIS X 8341-3:2016 covers web content. Japan’s Digital Agency uses it, together with WCAG 2.2 criteria that the JIS standard does not include, for its own websites (Digital Agency). It is useful for kiosk software built on web technology, but it is not a certification for physical kiosks.

For a kiosk project, assess three areas separately: physical accessibility, interface accessibility, and service accessibility (including how assistance works). Requirements vary by venue, operator, building, and procurement terms.

6. Payments: Plan the Mix Before Designing the Enclosure

Payment choices drive cabinet size, internal layout, and service visits, so they belong in the industrial-design phase.

Japan’s Ministry of Economy, Trade and Industry (METI) reported a 2025 cashless payment ratio of 58.0%, or ¥162.7 trillion, measured by its domestic indicator. Credit cards made up 82.7% of cashless value, code (QR) payments 10.2%, electronic money 3.7%, and debit cards 3.4% (METI). Under METI’s older international-comparison indicator, the 2025 figure is 46.3% (Impress Watch).

These figures measure payment value, not transaction counts or the payment mix at any particular site. National statistics give context, but the actual payment mix has to be established for each venue and its users. Glory’s sample S1000 layout, with six cash-capable and three cashless-only stations, is the kind of decision that site-level data should drive.

7. Reliability: Design for Recovery, Not Just Uptime

In extended-hours locations, small failures get expensive: paper runs out, a ticket jams, a scanner stops responding, a payment terminal loses its connection, or a cash unit can’t confirm its balance.

The Glory S1000 brochure shows how Japanese hardware handles these cases (Glory):

Automatic recount: the unit can recount its cash internally without staff removing the money.
Guided error recovery: the display shows animated steps for clearing errors, along with deposited and dispensed amounts.
Transaction logs: operating and error history can be checked on the unit or analyzed on a PC.
Forgotten-cash alerts: an LED, a buzzer, and a light at the coin outlet warn customers who leave change behind.

JR East’s operator-wait display is the same principle applied to the customer: it shows the user what is happening and how long it will take.

A clear recovery path for customers might look like this:

Payment failure → clear message → retry → alternative payment → call staff or a remote operator

A compact kiosk that needs a technician visit for every minor fault won’t deliver the labor savings expected from self-service.

8. Buyer Checklist: Specify Before Requesting Quotes

Area	Questions to answer
Footprint	What are the cabinet dimensions and the full envelope: approach space, queue, door swing, service clearance?
Accessibility	Reach heights, knee clearance, tactile/audio input, call device, and assisted alternative?
Payment	Which methods are needed, based on venue-level data rather than national averages?
Workflow split	Which steps must happen at the kiosk, and which can move to a staffed point?
Peripherals	Printer, scanner, card/IC reader, passport or ID reader: how is each one accessed and replaced?
Assistance	If remote help is offered, what are the operator hours, capacity, and maximum wait?
Recovery	What does the customer see when each component fails?
Serviceability	Consumable capacity, refill intervals, and remote monitoring?
Compliance	Venue accessibility, electrical, payment-security, privacy, and procurement rules?
Total cost of ownership	Do space, labor, and transaction gains cover hardware, service, and assistance costs?

Conclusion

Japan’s compact kiosks are less about miniaturization than about deciding where each part of the service happens. A meal-ticket machine gives up high-value notes to fit on a counter. Loppi leaves payment to the register. Semi-self checkout keeps staff on the scanner and automates the cash. JR East’s talking machines moved assistance to a remote center and showed that assisted self-service still depends on staffing.

The same principle applies whether the project is a transit kiosk in Southeast Asia, a convenience-store terminal in Korea, or a pharmacy kiosk in India: optimize the entire service journey, not just the size of the machine.
